A World-Class Cooling Solution for any environment? No Problem.
Any engine, any size, anywhere. We can cool it. Air, liquid, both? No problem. We have the core. Harsh environment? No worries. We have the coatings. Hard to cool, tight space, demanding specifications? We can do it. We have the experience.
For nearly half a century we have served as the preferred supplier for the largest power generation companies. We provide turn-key engine mounted radiator packages along with remote mounted cooling systems. Be it liquid or air, we can cool it with our vast and ever-expanding line of copper/brass and aluminum radiators.
Radiators
- EC: Engine Cooler (Engine Mounted)
- HC: Horizontal Cooler (Remote Mounted)
- VC: Vertical Cooler (Remote Mounted)

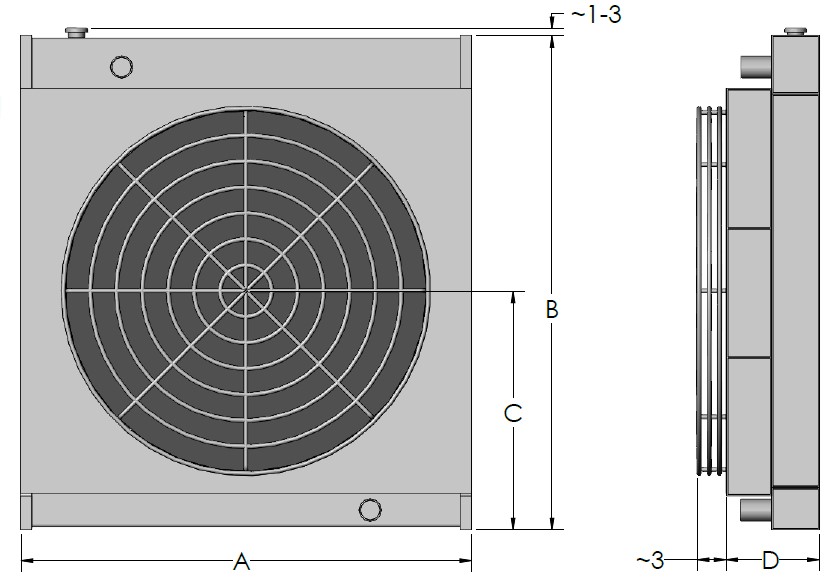

EC-N Engine Mounted Cooler With No Fan (Fan on Engine)
Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.
Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.
| MODEL | A | B | C | D | MAX FAN Ø |
|---|---|---|---|---|---|
| EC006 | 32.0 | 40.3 | 20.1 | 11.0 | 30.0 |
| EC008 | 36.0 | 46.3 | 22.6 | 11.0 | 34.0 |
| EC010 | 40.0 | 51.3 | 25.1 | 11.0 | 40.0 |
| EC013 | 46.0 | 57.3 | 28.1 | 11.0 | 42.0 |
| EC015 | 50.0 | 59.8 | 29.1 | 11.5 | 48.0 |
| EC018 | 54.0 | 66.4 | 32.8 | 11.5 | 50.0 |
| EC025 | 64.3 | 78.8 | 38.1 | 16.6 | 60.0 |
| EC030 | 72.3 | 88.8 | 43.1 | 16.6 | 60.0 |
| EC035 | 80.3 | 88.8 | 43.1 | 16.6 | 60.0 |
| EC040 | 80.3 | 98.8 | 48.1 | 16.6 | 72.0 |
| EC046 | 91.3 | 98.8 | 48.1 | 16.6 | 72.0 |
All dimensions in inches
*Depth will vary with core and options selected

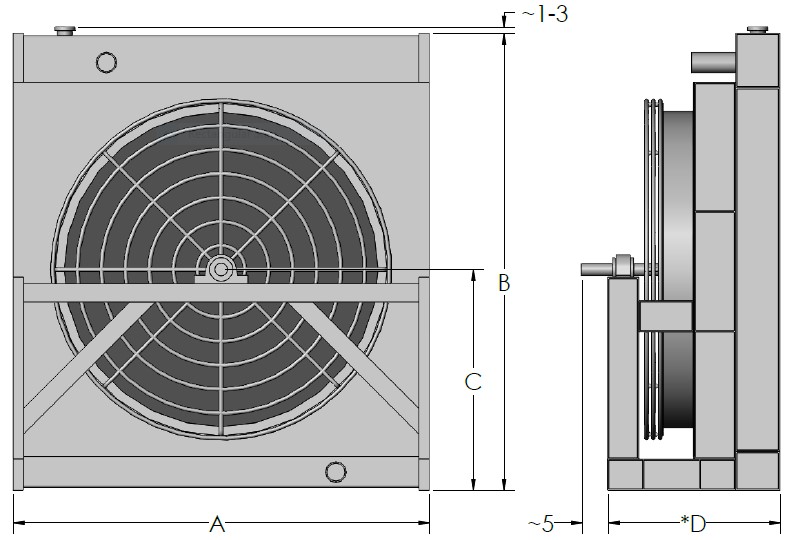

EC-F Engine Mounted Cooler With Fan
Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.
Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.
| MODEL | A | B | C | D* | FAN Ø |
|---|---|---|---|---|---|
| EC006 | 32.0 | 40.3 | 20.1 | 21.8 | 30.0 |
| EC008 | 36.0 | 46.8 | 23.1 | 20.0 | 30.0 |
| EC010 | 40.0 | 51.8 | 25.6 | 24.1 | 38.0 |
| EC013 | 46.0 | 57.3 | 28.6 | 26.0 | 42.0 |
| EC015 | 50.0 | 60.3 | 29.6 | 26.0 | 48.0 |
| EC018 | 54.0 | 66.4 | 33.0 | 29.0 | 48.0 |
| EC025 | 64.3 | 78.8 | 38.0 | 33.1 | 54.0 |
| EC030 | 72.3 | 88.8 | 43.1 | 33.1 | 60.0 |
| EC035 | 80.3 | 88.8 | 43.1 | 33.1 | 60.0 |
| EC040 | 80.3 | 98.8 | 48.1 | 33.1 | 72.0 |
| EC046 | 91.3 | 98.8 | 48.1 | 33.1 | 72.0 |
| EC052 | 92.3 | 110.8 | 54.1 | 33.1 | 84.0 |
| EC060 | 100.3 | 116.8 | 58.1 | 33.1 | 84.0 |
| EC066 | 108.3 | 116.8 | 58.1 | 33.1 | 84.0 |
| EC072 | 108.3 | 125.8 | 62.6 | 33.1 | 84.0 |
| EC078 | 108.3 | 135.5 | 68.8 | 43.9 | 84.0 |
| EC085 | 124.3 | 128.8 | 65.9 | 43.9 | 84.0 |
| EC088 | 128.8 | 131.2 | 65.4 | 43.9 | 100.0 |
| EC092 | 124.3 | 141.3 | 70.1 | 43.9 | 100.0 |
| EC100 | 124.3 | 150.3 | 74.6 | 43.9 | 108.0 |
| EC110 | 128.8 | 159.5 | 79.3 | 43.9 | 108.0 |
| EC120 | 128.8 | 171.5 | 85.1 | 43.9 | 108.0 |
All dimensions in inches
*Depth will vary with core and options selected
EC-N Engine Mounted Cooler With No Fan (Fan on Engine)
Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.
Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.
| MODEL | A | B | C | D* | FAN Ø |
|---|---|---|---|---|---|
| HC006 | 32.0 | 40.3 | 20.1 | 36.0 | 30.0 |
| HC008 | 36.0 | 45.1 | 22.6 | 36.0 | 30.0 |
| HC010 | 40.0 | 50.3 | 25.1 | 36.0 | 36.0 |
| HC013 | 46.0 | 56.3 | 28.1 | 48.0 | 42.0 |
| HC015 | 50.0 | 58.3 | 29.1 | 48.0 | 48.0 |
| HC018 | 54.0 | 66.3 | 33.1 | 60.0 | 48.0 |
| HC025 | 64.3 | 76.3 | 38.1 | 72.0 | 54.0 |
| HC030 | 72.3 | 86.3 | 43.1 | 84.0 | 60.0 |
| HC035 | 80.3 | 86.3 | 43.1 | 84.0 | 60.0 |
| HC040 | 80.3 | 96.3 | 48.1 | 84.0 | 72.0 |
| HC046 | 91.3 | 96.3 | 48.1 | 84.0 | 72.0 |
All dimensions in inches
*Height will vary with core and options selected

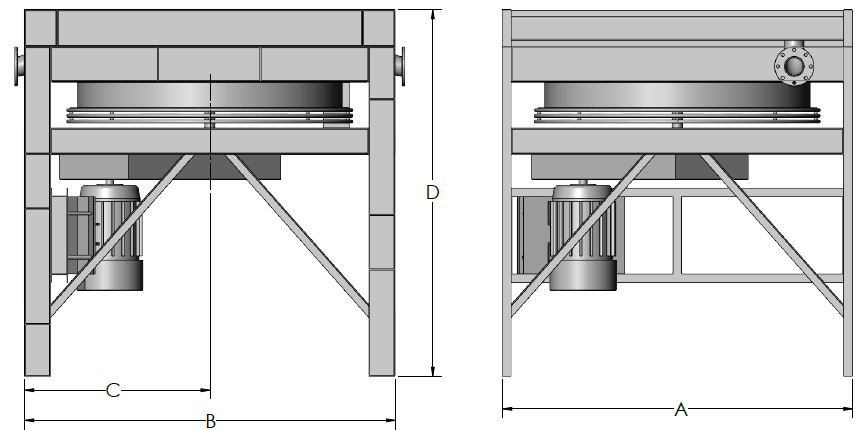

HC – Remote Horizontal Cooler with V-belt Drive Fan
Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.

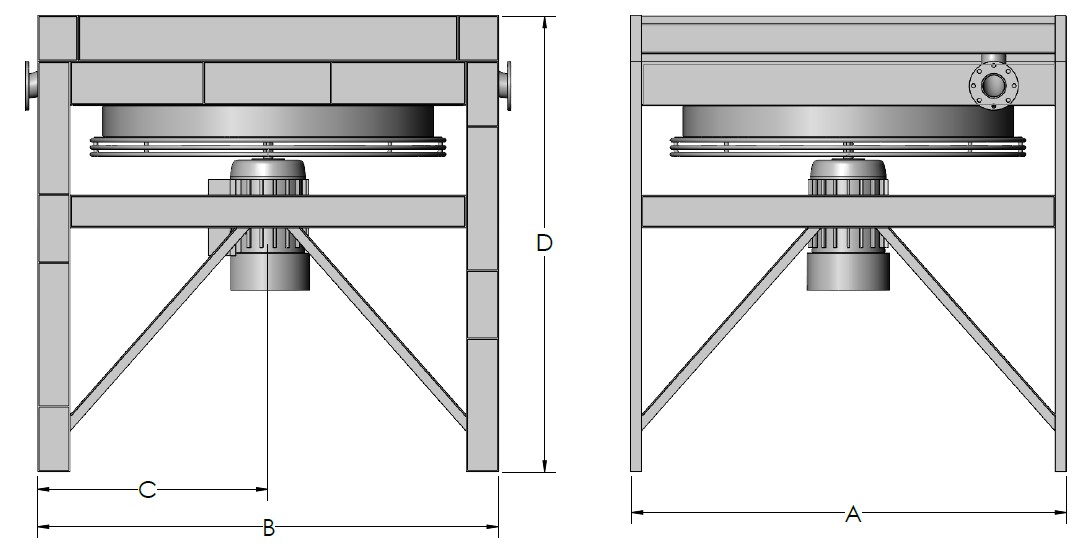

Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.
| MODEL | A | B | C | D* | FAN Ø |
|---|---|---|---|---|---|
| HC025 | 64.3 | 76.3 | 38.1 | 72.0 | 54.0 |
| HC030 | 72.3 | 86.3 | 43.1 | 84.0 | 60.0 |
| HC035 | 80.3 | 86.3 | 43.1 | 84.0 | 60.0 |
| HC040 | 80.3 | 96.3 | 48.1 | 84.0 | 72.0 |
| HC046 | 91.3 | 96.3 | 48.1 | 84.0 | 72.0 |
| HC052 | 92.3 | 108.3 | 54.1 | 84.0 | 84.0 |
| HC060 | 100.3 | 116.3 | 58.1 | 84.0 | 84.0 |
| HC066 | 108.3 | 116.3 | 58.1 | 64.5 | 84.0 |
| HC072 | 108.3 | 125.3 | 62.6 | 84.0 | 84.0 |
| HC078 | 108.3 | 132.5 | 66.3 | 84.0 | 84.0 |
| HC085 | 131.0 | 126.2 | 63.1 | 84.0 | 84.0 |
| HC092 | 124.3 | 139.9 | 69.9 | 94.5 | 100.0 |
| HC100 | 124.3 | 148.9 | 74.4 | 112.3 | 108.0 |
| HC119 | 137.0 | 159.3 | 79.7 | 89.6 | 108.0 |
All dimensions in inches
*Height will vary with core and options selected
EC-N Engine Mounted Cooler With No Fan (Fan on Engine)
Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.
Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.

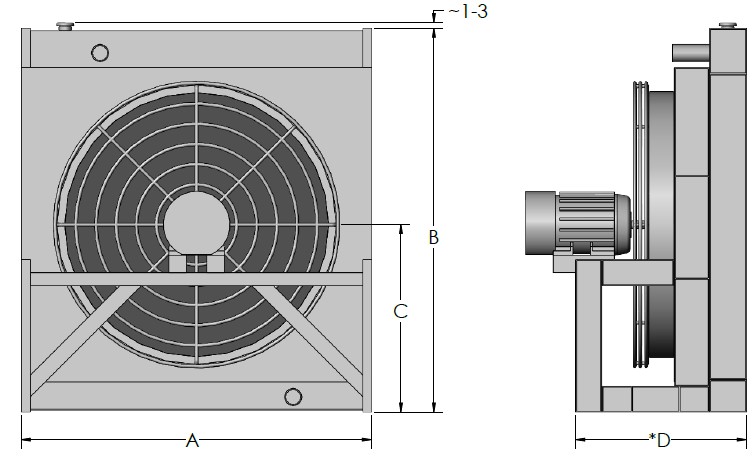

| MODEL | A | B | C | D* | FAN Ø |
|---|---|---|---|---|---|
| VC006 | 32.0 | 40.3 | 20.1 | 15.0 | 30.0 |
| VC008 | 36.0 | 46.3 | 22.6 | 15.0 | 30.0 |
| VC010 | 40.0 | 51.8 | 25.6 | 24.3 | 36.0 |
| VC013 | 46.0 | 57.8 | 28.6 | 26.0 | 42.0 |
| VC015 | 50.0 | 60.3 | 29.6 | 26.0 | 48.0 |
| VC018 | 54.0 | 66.4 | 33.0 | 31.0 | 48.0 |
| VC025 | 64.3 | 78.8 | 38.1 | 39.1 | 54.0 |
| VC030 | 72.3 | 88.8 | 43.1 | 39.1 | 60.0 |
| VC035 | 80.3 | 88.8 | 43.1 | 39.1 | 60.0 |
| VC040 | 80.3 | 98.8 | 48.1 | 39.1 | 72.0 |
| VC046 | 91.3 | 98.8 | 48.1 | 39.1 | 72.0 |
All dimensions in inches
*Depth will vary with options selected and motor size
VC – Remote Vertical Cooler with V-belt Drive Fan

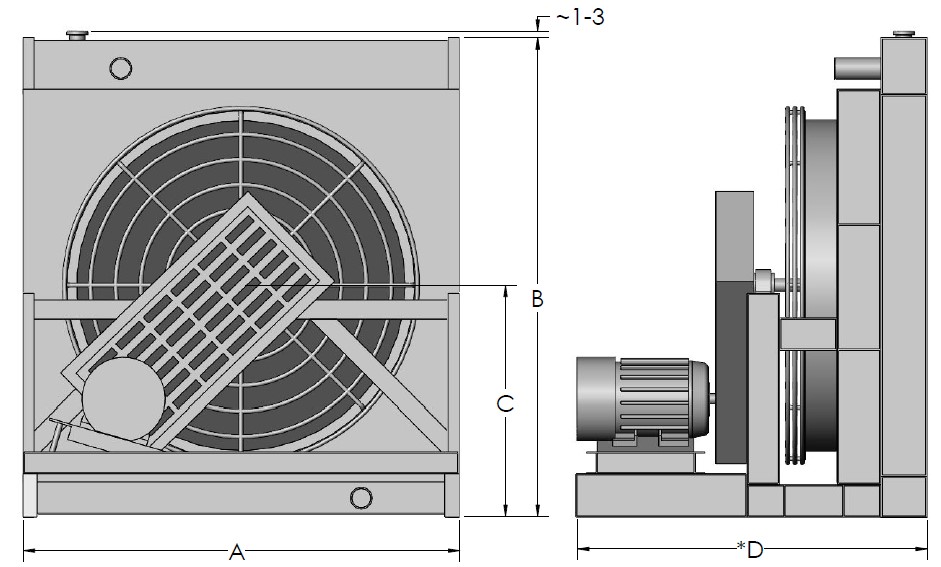

Additional selections, options, and accessories are available. Consult with Sales Application Engineer. Dimensions are approximate and subject to change.
Simplified representation of standard single circuit radiator shown – Installation drawings available upon request.
| MODEL | A | B | C | D* | FAN Ø |
|---|---|---|---|---|---|
| VC025 | 64.3 | 78.8 | 38.0 | 64.5 | 54.0 |
| VC030 | 72.3 | 88.8 | 43.1 | 64.5 | 60.0 |
| VC035 | 80.3 | 88.8 | 43.1 | 64.5 | 60.0 |
| VC040 | 80.3 | 98.8 | 48.1 | 64.5 | 72.0 |
| VC046 | 91.3 | 98.8 | 48.1 | 64.5 | 72.0 |
| VC052 | 92.3 | 110.8 | 54.1 | 64.5 | 84.0 |
| VC060 | 100.3 | 116.8 | 58.1 | 64.5 | 84.0 |
| VC066 | 108.3 | 116.8 | 58.1 | 64.5 | 84.0 |
| VC072 | 108.3 | 125.8 | 62.6 | 64.5 | 84.0 |
| VC078 | 108.3 | 135.5 | 68.8 | 75.3 | 84.0 |
| VC085 | 124.3 | 128.8 | 65.9 | 75.3 | 84.0 |
| VC088 | 128.8 | 131.2 | 65.4 | 75.3 | 100.0 |
| VC092 | 124.3 | 141.3 | 70.1 | 75.3 | 100.0 |
| VC100 | 124.3 | 150.3 | 74.6 | 75.3 | 108.0 |
| VC110 | 128.8 | 159.5 | 79.3 | 75.3 | 108.0 |
| VC120 | 128.8 | 171.5 | 85.1 | 75.3 | 108.0 |
All dimensions in inches
*Depth will vary with options selected and motor size

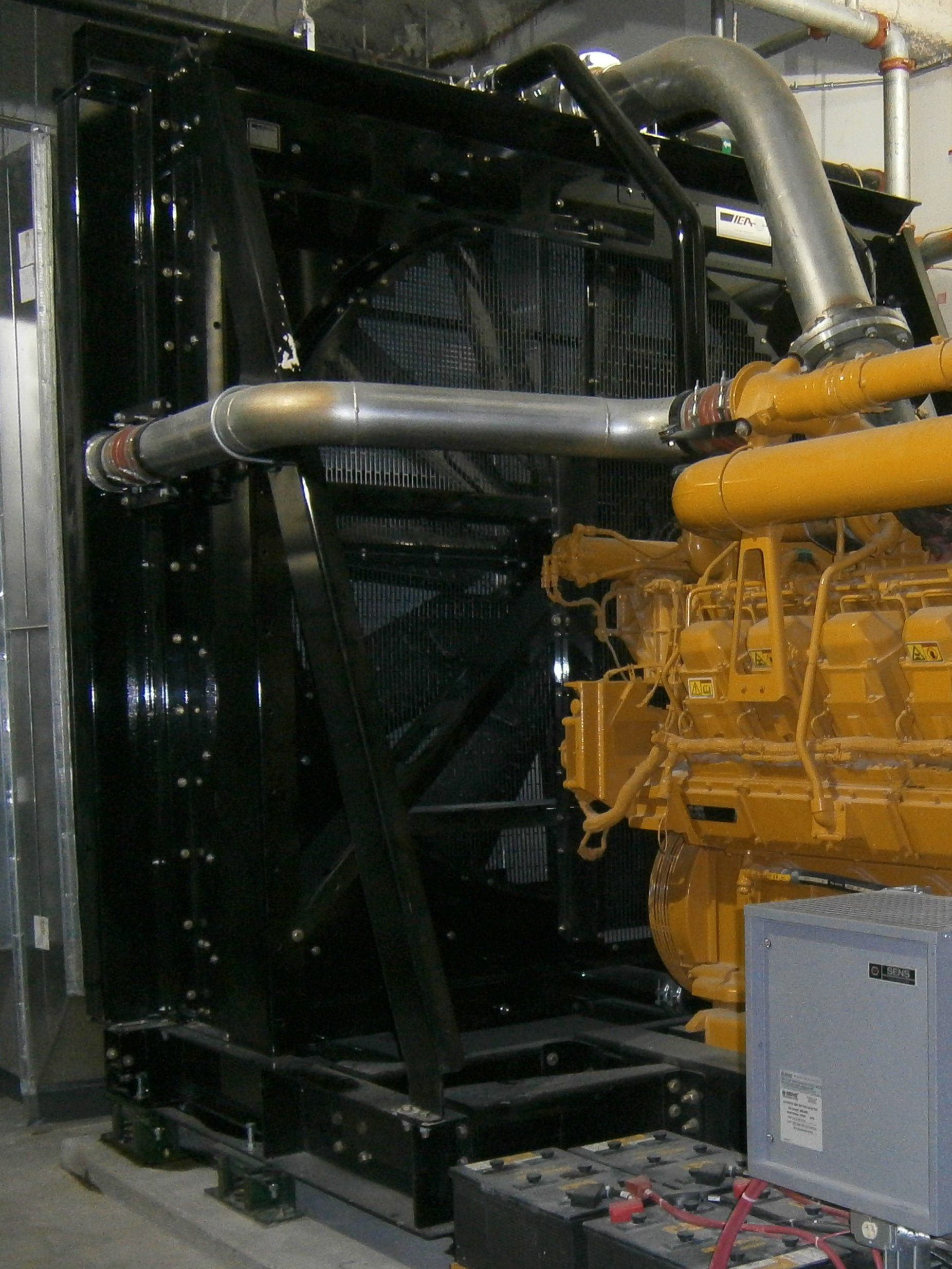

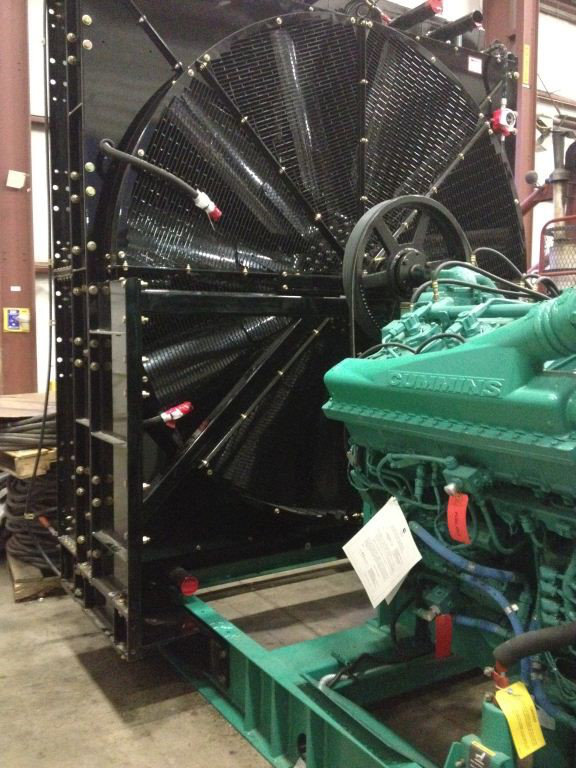

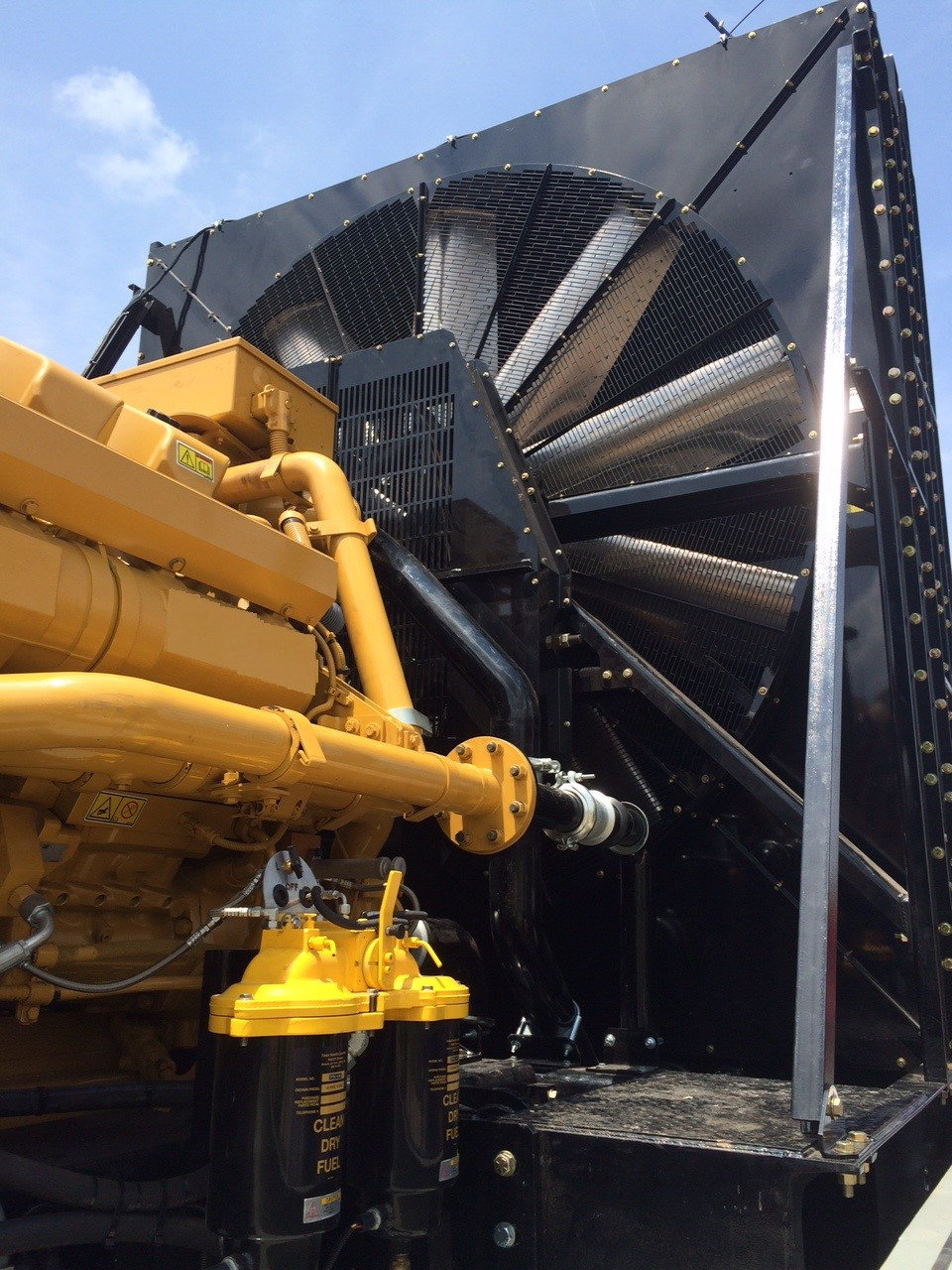

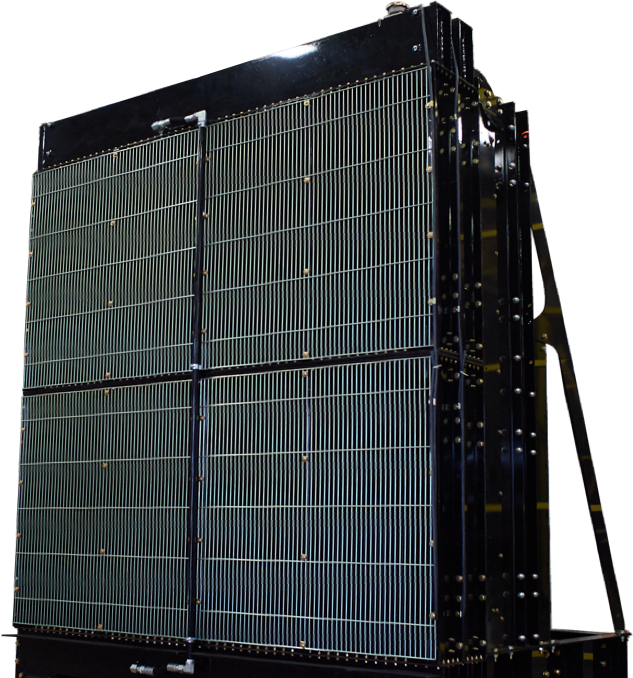

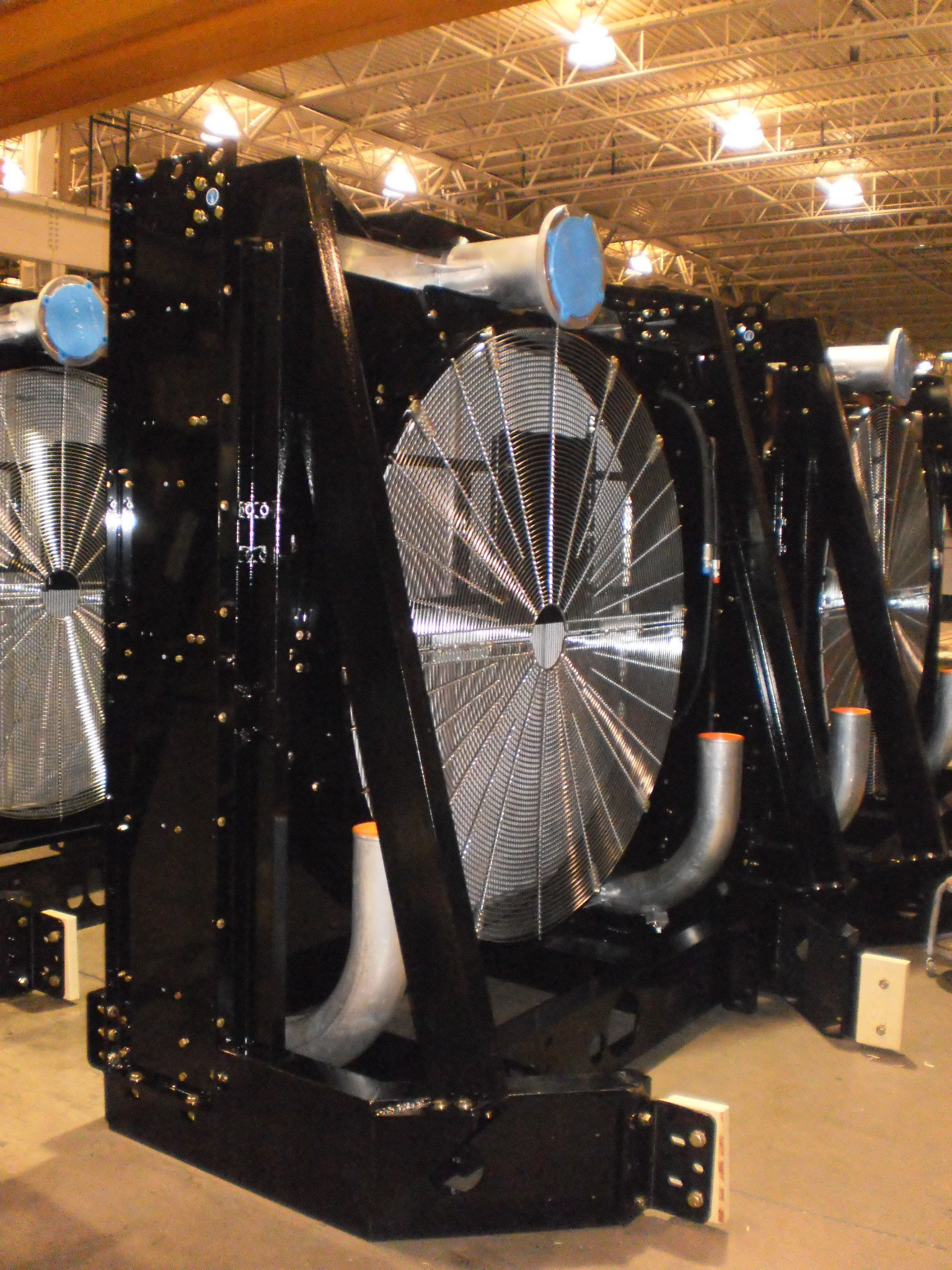

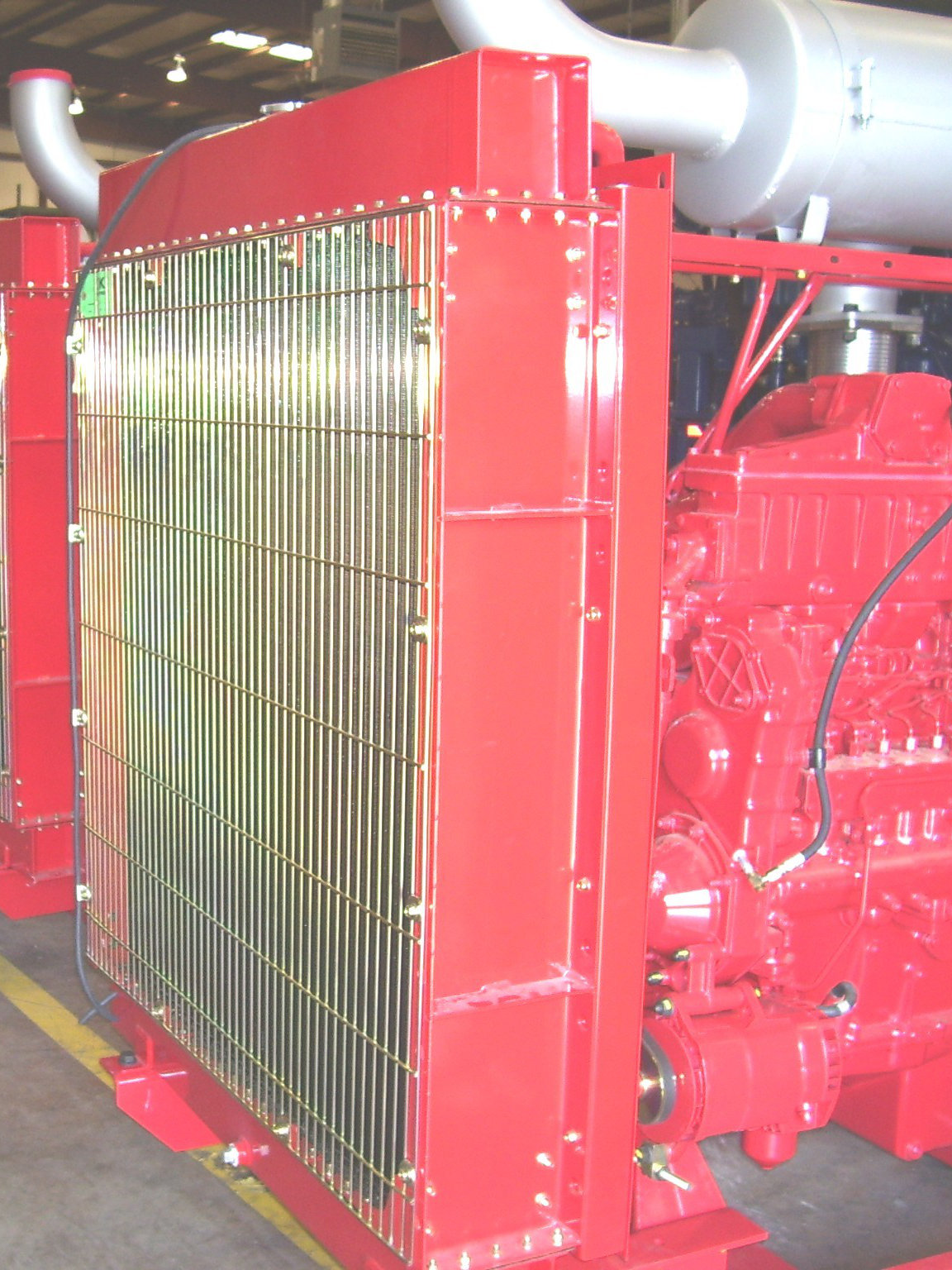

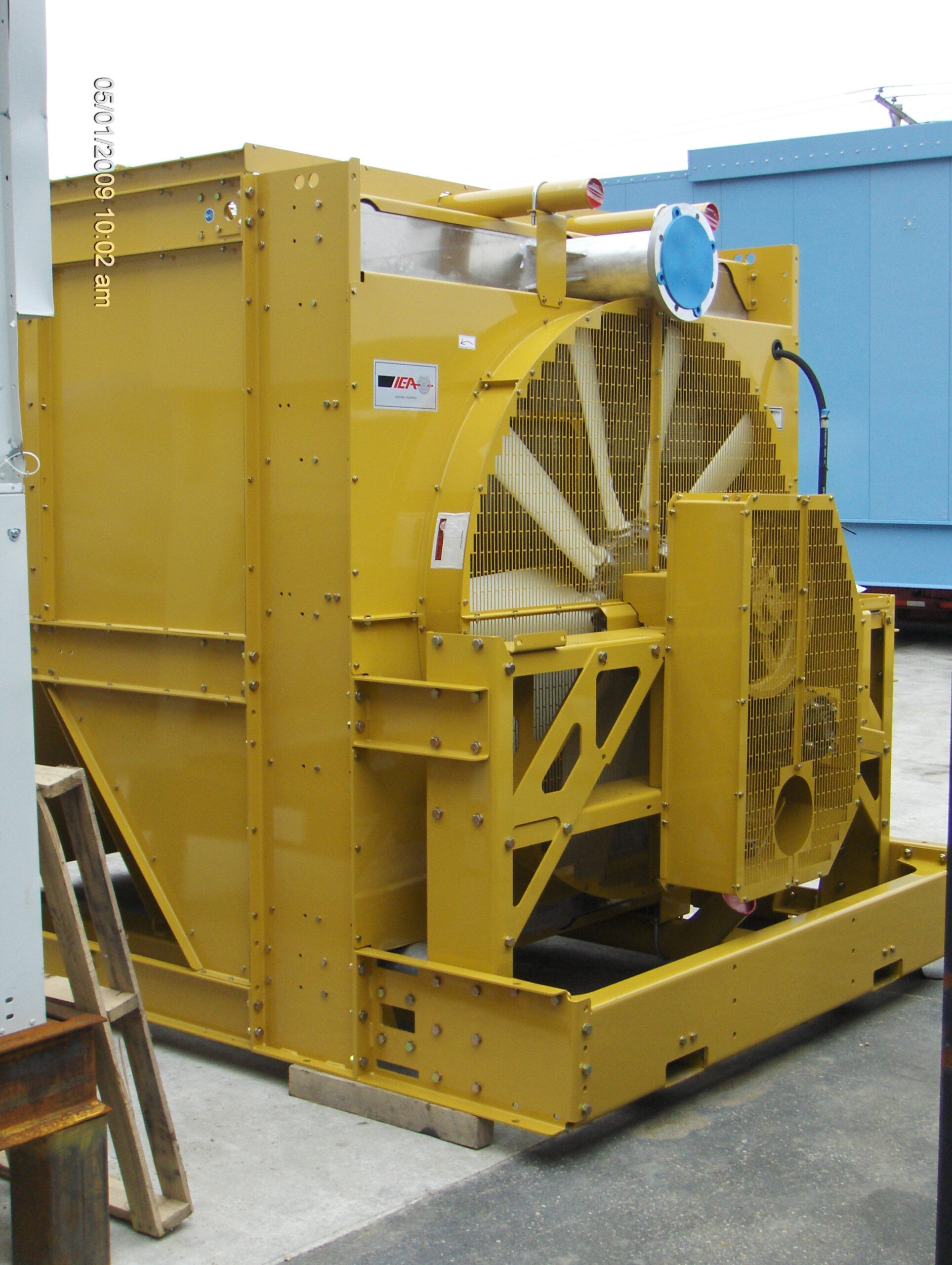

EC – Engine Mounted Radiators
Have an engine that needs cooling? We craft expertly designed, fully integrated engine mounted cooling radiators that fit your engine precisely. We have designed engine mounted radiator packages for EVERY large engine manufacturer. Our Application Engineers and design team have decades of experience in the industry. No matter the engine, application, environment, or demand. We have the perfect radiator solution.
IEA provides engine mounted radiators to match any engine cooling system arrangement. From single and multi-circuit liquid cooling systems, charge air coolers, or any combination, we have you covered. We offer stand alone radiators or turn-key packages that include options to fulfill any requirement.
Core and Cooling System Options
- Copper Brass Plate Fin
- Copper Brass Indexed Fin (Serpentine)
- Aluminum
- Round Tube
- Fan on Engine (EC-N)
- Fan on Radiator (EC-F)
- Charge Air Coolers
- Multi-Circuit Coolers (JW/AC/CAC)
- Stacked
- Split
Options
- Level Switches
- Duct Adapters
- Fuel/Oil/Hydraulic Coolers
- Offshore Coatings
- Explosion Proof (Non-Sparking)
- Certifications (IBC/OSHPD)
- Low Profile/ISO Container Complaint
- Complete Engine Mounted Packages
- A – Connections
- B – V-belt Drive
- C – Guarding
- D – Fuel/Oil Cooler
- E – Radiator Support/Wishbone

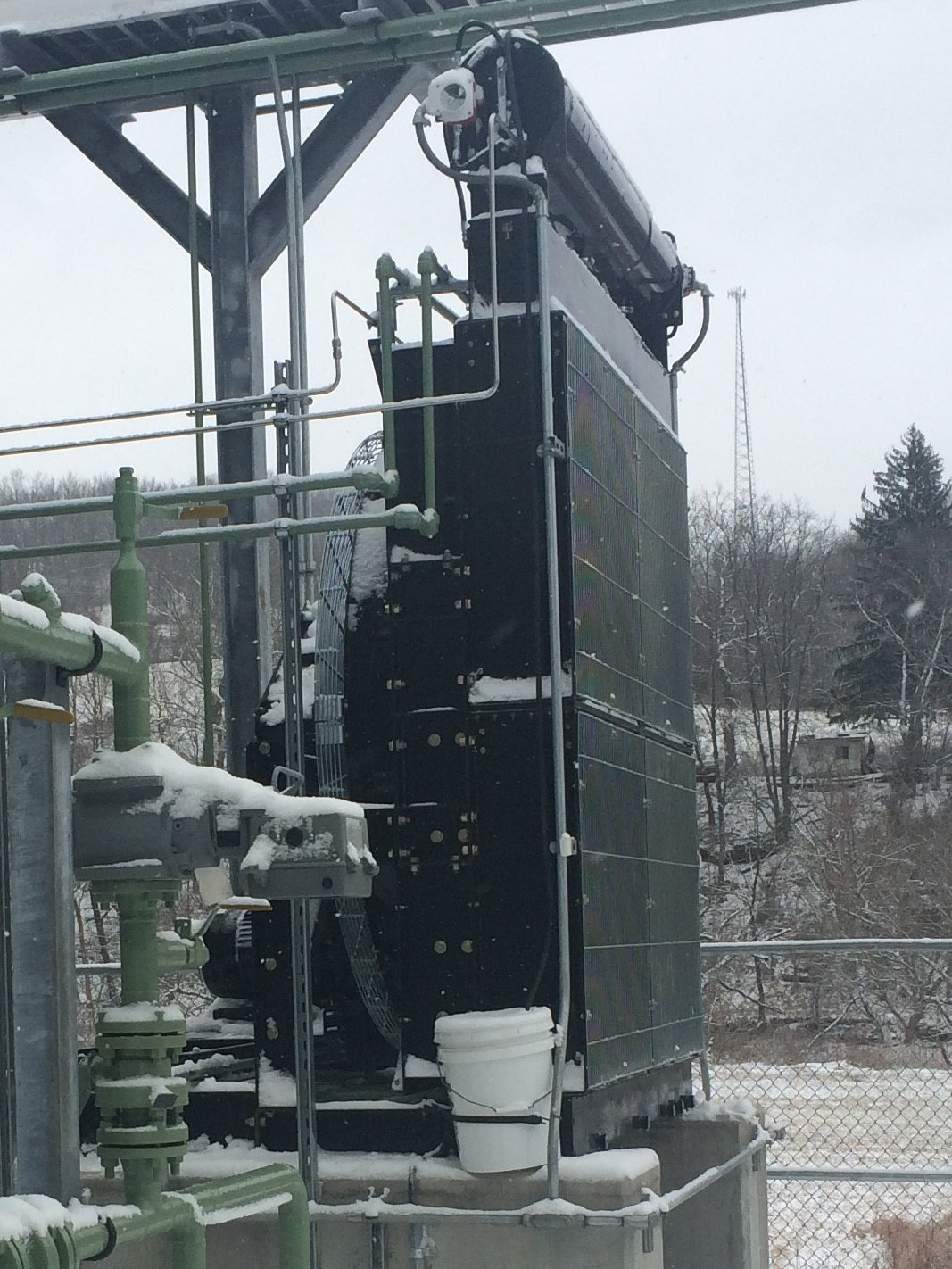

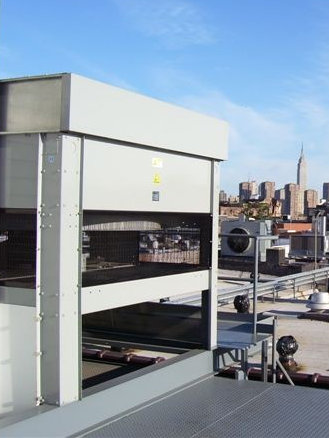

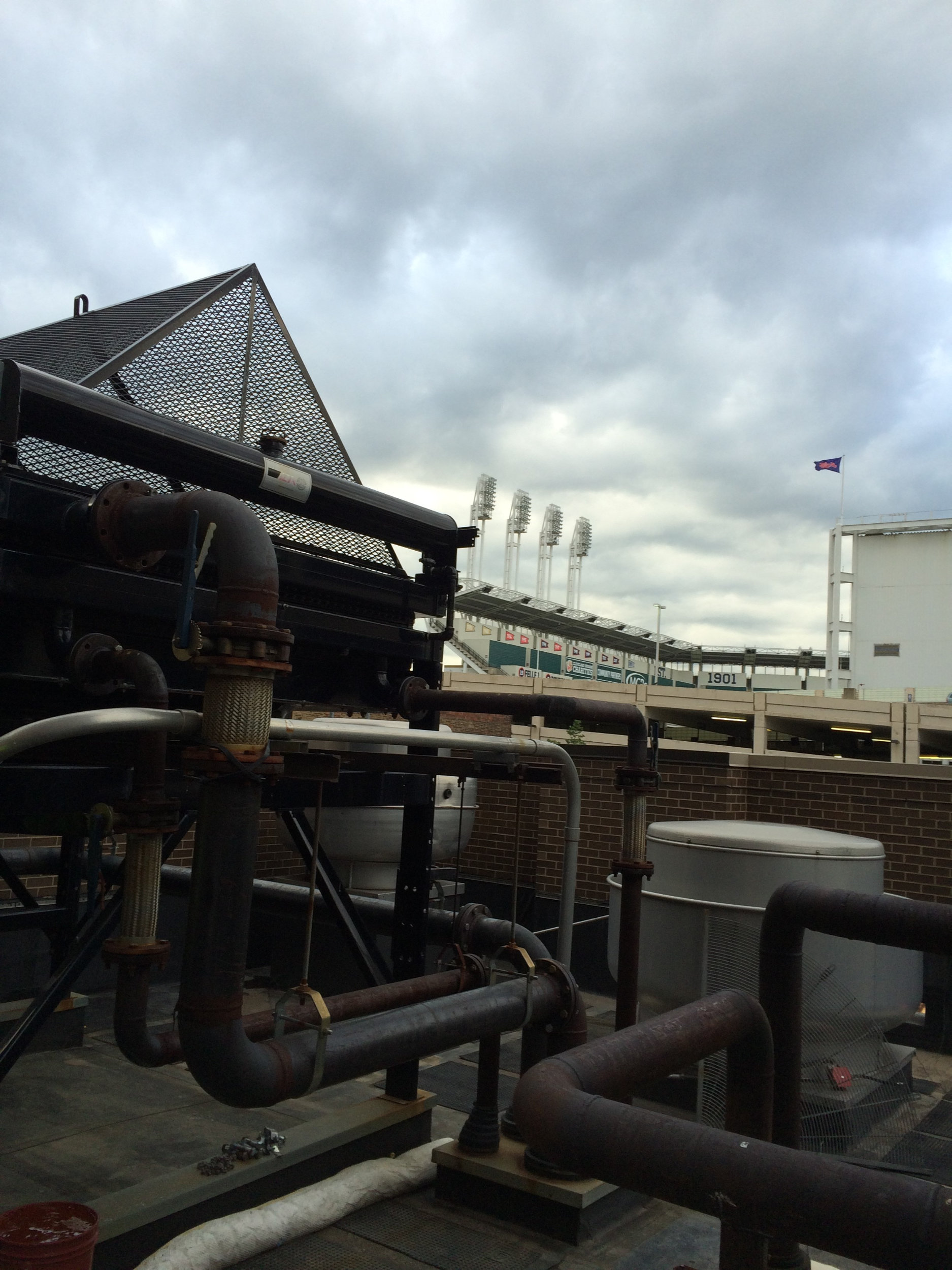

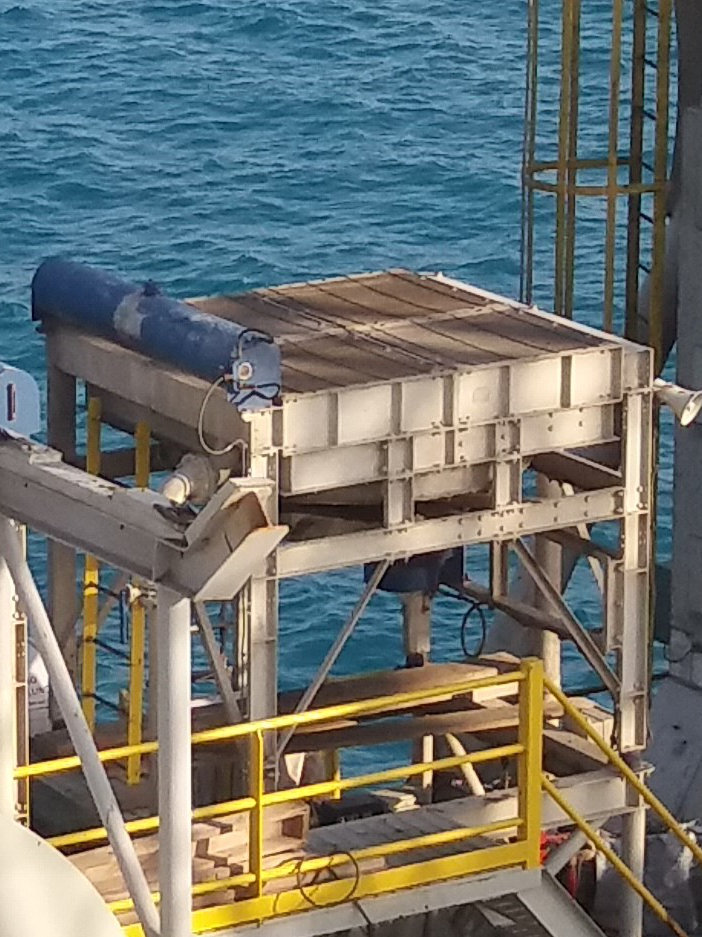

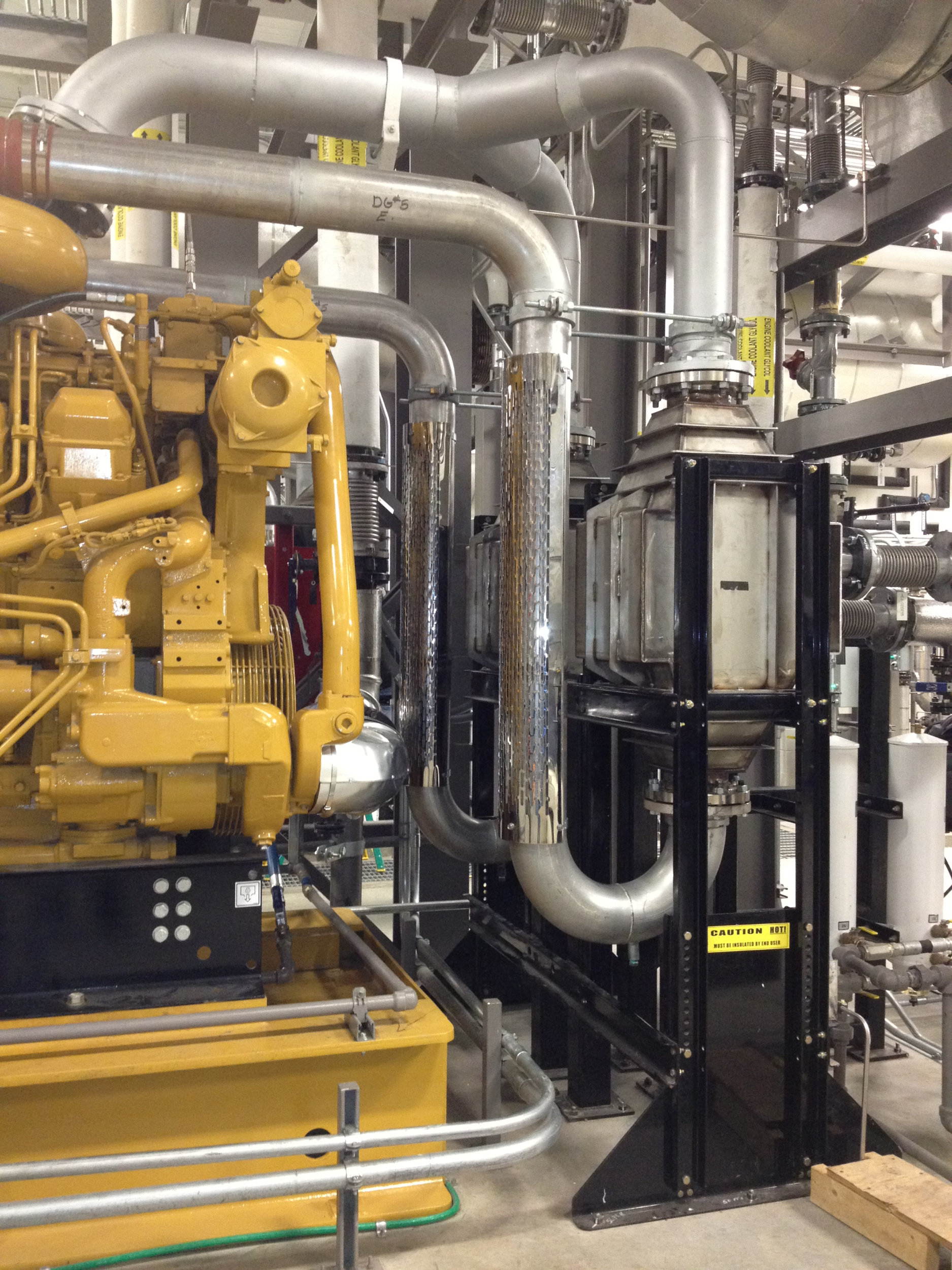

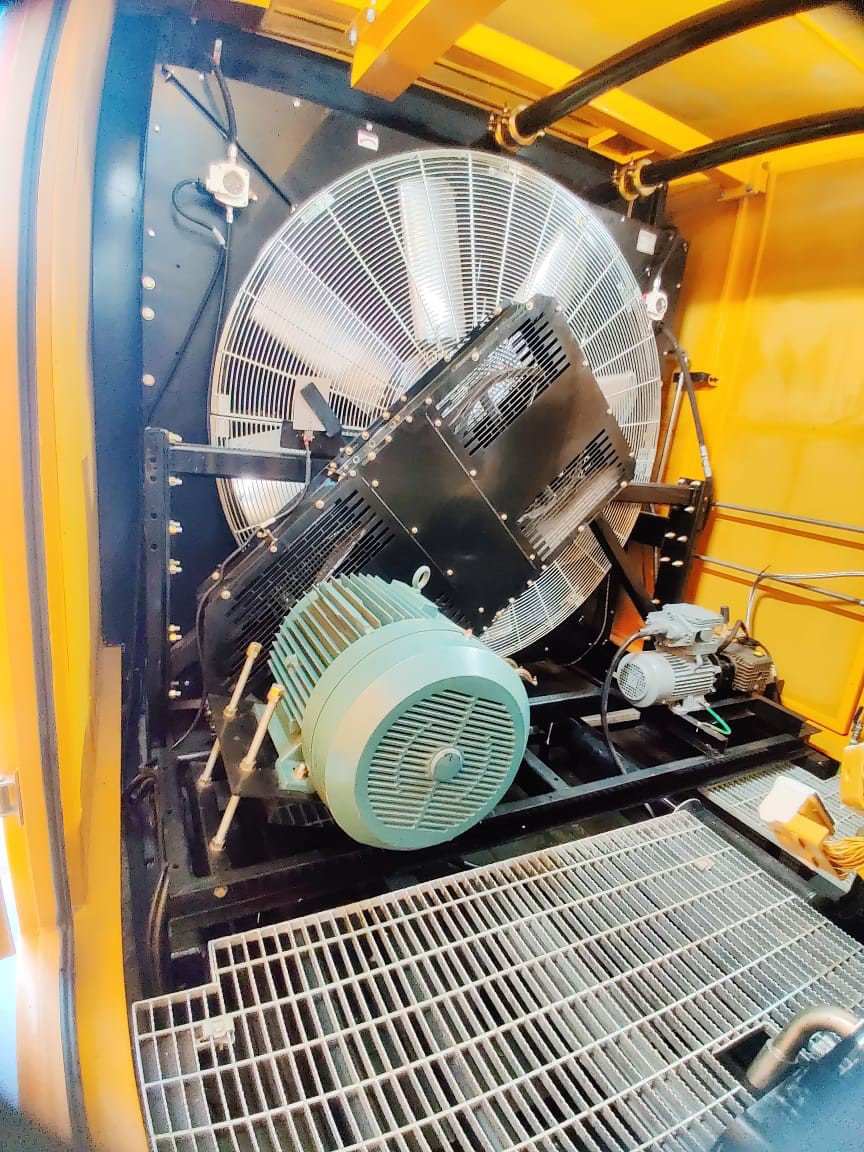

HC/VC/MC – Remote Mounted Radiators
Have an engine that needs cooling? Can’t drive it off the engine? No room in the engine room? We got you. We have designed electric motor driven radiators that can mount anywhere, for any engine, and in the most extreme environments. We have seen it all. Our Application Engineers and design team have decades of experience in the industry. No matter the engine, application, environment, or demand. We have the solution.
IEA provides remote mounted radiator and cooling systems to match any engine cooling system arrangement. From single and multi-circuit liquid cooling systems, charge air coolers, or any combination, we have you covered. Sound restrictions, seismic zones, wind-loads, snow, hail, or salt air. Bring it on.
Core and Cooling System Options
- Copper Brass Plate Fin
- Copper Brass Indexed Fin (Serpentine)
- Aluminum
- Round Tube
- Remote Charge Air Coolers
- Multi-Circuit Coolers (JW/AC/CAC)
- Stacked
- Split
Radiator Configurations
- V-Belt Drive
- Direct Drive
- HC – Horizontal Core
- VC – Vertical Core
- MC – Multi-Fan (Horizontal & Vertical)
- HC/VCR Round Tube (Horizontal & Vertical)
- HC/VCQ Quiet Coolers (Horizontal & Vertical)
Additional Options
- Level Switches
- Duct Adapters
- Snow Hoods/Hail Guards
- Expansion Tanks
- Offshore Coatings
- Corrosion Duty/Offshore Motors
- Explosion Proof (Non-Sparking)
- Certifications (IBC/OSHPD)
